Cab Mounts
Cab Mountings are designed for fast, hassle-free installation with a simple single-bolt system. Their unique rubber profile delivers exceptional ride comfort for vehicle cabs, while effectively controlling movement under shocks and bumps. Integrated overload and rebound washers add an extra layer of protection, ensuring a safe, reliable, and failsafe solution in demanding conditions.
Showing all 6 results

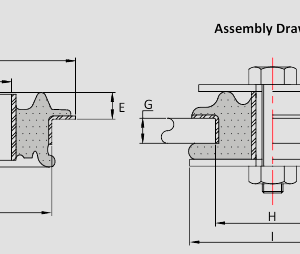

| SKU | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H Min (mm) | H Max (mm) | I Min (mm) | Max Load (kg) | Add to Quote | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAB-3-60 | 120 | 89 | 47 | 25 | 21 | 23 | 25 | 89.25 | 89.75 | 120 | 713 | ||
| CAB-3-45 | 120 | 89 | 47 | 25 | 21 | 23 | 25 | 89.25 | 89.75 | 120 | 428 | ||
| CAB-2-60 | 105 | 75 | 46 | 21 | 22 | 17 | 20 | 75.25 | 75.75 | 105 | 500 | ||
| CAB-2-45 | 105 | 75 | 46 | 21 | 22 | 17 | 20 | 75.25 | 75.75 | 105 | 300 | ||
| CAB-1-60 | 105 | 75 | 46 | 16.2 | 22 | 17 | 20 | 75.25 | 75.75 | 105 | 500 | ||
| CAB-1-45 | 105 | 75 | 46 | 16.2 | 22 | 17 | 20 | 75.25 | 75.75 | 105 | 300 |
