Compression Static Load
The force required to compress the component to a specific deflection
Compression – Spring Rate Kc The rate of force increase per unit of compression displacement

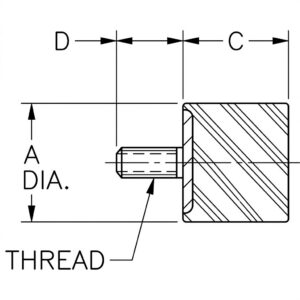

A Dimensional measurement A
C Dimensional measurement C
D Dimensional measurement D
Thread Size The specification of the threaded component
Durometer The hardness measurement of the material
Sandwich Mounts (Metric Thread) Type 3
Request Information
Share
Rubber Flex Bobbin Sandwich Mounts are designed to protect equipment and machinery against damaging vibration. This family of mounts has excellent capacity for energy control.
Constructed with high-strength bonds and specially compounded elastomers, these mounts provide high load-carrying capacity and assure long life.
The simple design and unitized construction provide low-cost mounting systems which are compact, lightweight, easy to install and maintenance-free.
These mounts are available in three size groups to suit a variety of applications. Small Rubber Flex Bobbin Sandwich Mounts are available in metric and standard (UNC) threads.
Typical applications for Rubber Flex Bobbin Sandwich Mounts include business machines, medical equipment, motorcycles, heating, ventilating and air conditioning equipment, light motors, appliances, shipping containers, feeders, compactors and vibratory rollers.
