Compression Static Load
The static force required to compress the component
Compression – Spring Rate Kc The rate at which the component resists compression
Shear Static Load The static force required to produce shear deformation
Shear – Spring Rate Ks The rate at which the component resists shear force

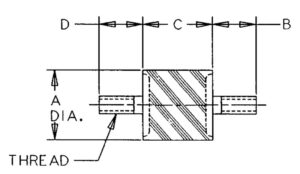

A Dimension A measurement
B Dimension B measurement
C Dimension C measurement
D Dimension D measurement
Thread Size The size specification of the threading
Sandwich Mounts (UNC Thread) Type 1
Request Information
Share
Rubber Flex Bobbin Sandwich Mounts are designed to protect equipment and machinery against damaging vibration. This family of mounts has excellent capacity for energy control.
Constructed with high-strength bonds and specially compounded elastomers, these mounts provide high load-carrying capacity and assure long life.
The simple design and unitized construction provide low-cost mounting systems which are compact, lightweight, easy to install and maintenance-free.
These mounts are available in three size groups to suit a variety of applications. Small Rubber Flex Bobbin Sandwich Mounts are available in metric and standard (UNC) threads.
Typical applications for Rubber Flex Bobbin Sandwich Mounts include business machines, medical equipment, motorcycles, heating, ventilating and air conditioning equipment, light motors, appliances, shipping containers, feeders, compactors and vibratory rollers.
