- Economical.
- Compact and lightweight.
- Easy to install.
- Maintenance-free.
- Three size groups: small, medium and large.
- Unitized construction.
VMA-2008A Sandwich Mounts Metric Thread Type 1
Item #:
VMA-2008A
/
Manufacturer:
RPM Mechanical Inc
Economical. Compact and lightweight. Easy to install. Maintenance-free. Three size groups: small, medium and large. Unitized construction.
Need a custom part similar to VMA-2008A? Simply click to ‘Add to Quote Cart’ below and share your project information in the quote checkout. You can also give us a call at 888-842-5668.
Highlights
Spec Table

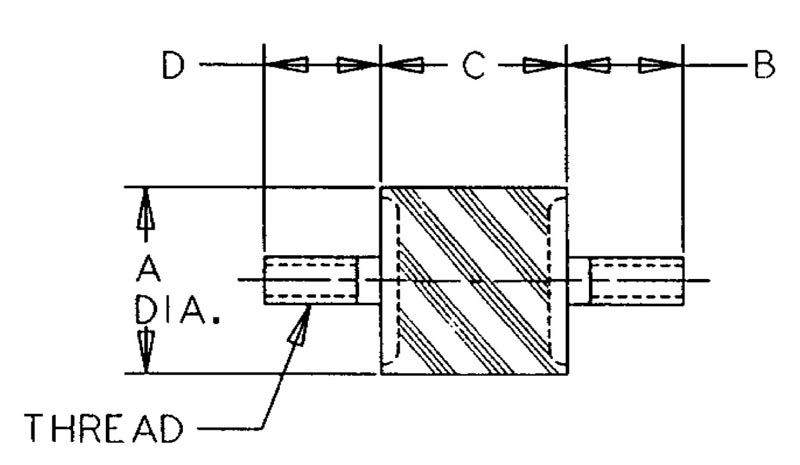

| A (Imperial) | 0.79 |
| B (Imperial) | 0.59 |
| C (Imperial) | 0.31 |
| Compression Spring Rate Kc (Imperial) | 5367 |
| Compression Spring Rate Kc (Metric) | 950 |
| Compression Static Load (Imperial) | 128 |
| Compression Static Load (Metric) | 570 |
| D (Imperial) | 0.59 |
| Durometer | 57 |
| Elastomer | Natural Rubber |
| Grade per SAE J429 | 4.6 |
| Manufacturer | RPM Mechanical Inc |
| Shear Spring Rate Ks (Imperial) | 83 |
| Shear Spring Rate Ks (Metric) | 42 |
| Shear Static Load (Imperial) | 190 |
| Shear Static Load (Metric) | 168 |
| Thread Size | M6 |
| Thread Type | Metric |
| Type | 1 |
