VMC-7560M Sandwich Mounts Metric Thread Type 4
Item #:
VMC-7560M
/
Manufacturer:
RPM Mechanical
Need a custom part similar to VMC-7560M? Simply click to ‘Add to Quote Cart’ below and share your project information in the quote checkout. You can also give us a call at 888-842-5668.
Highlights

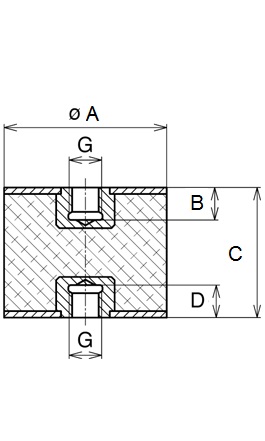

Spec Table
| A (Imperial) | 3 |
| B (Imperial) | 0.47 |
| C (Imperial) | 2.35 |
| Compression Spring Rate Kc (Imperial) | 134 |
| Compression Spring Rate Kc (Metric) | 755 |
| Compression Static Load (Imperial) | 1195 |
| Compression Static Load (Metric) | 5316 |
| D (Imperial) | 0.47 |
| Durometer | 68 |
| Elastomer | Natural Rubber |
| Manufacturer | RPM Mechanical |
| Shear Spring Rate Ks (Imperial) | 29 |
| Shear Spring Rate Ks (Metric) | 161 |
| Shear Static Load (Imperial) | 398 |
| Shear Static Load (Metric) | 1772 |
| Thread Size | M12 |
| Type | 4 |
