- Economical.
- Compact and lightweight.
- Easy to install.
- Maintenance-free.
- Three size groups: small, medium and large.
- Unitized construction.
VMC-8075IU Sandwich Mounts Unc Thread Type 4
Item #:
VMC-8075IU
/
Manufacturer:
RPM Mechanical Inc
Economical. Compact and lightweight. Easy to install. Maintenance-free. Three size groups: small, medium and large. Unitized construction.
Need a custom part similar to VMC-8075IU? Simply click to ‘Add to Quote Cart’ below and share your project information in the quote checkout. You can also give us a call at 888-842-5668.
Highlights
Spec Table

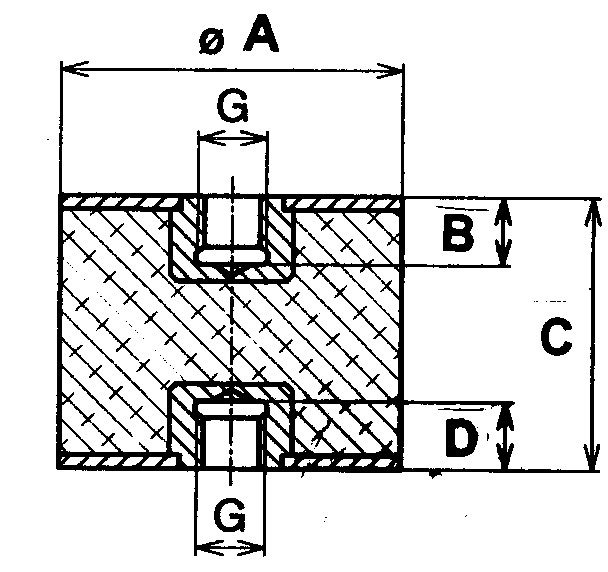

| A (Imperial) | 3.15 |
| B (Imperial) | 1/2 |
| C (Imperial) | 3 |
| Compression Spring Rate Kc (Imperial) | 35 |
| Compression Spring Rate Kc (Metric) | 196 |
| Compression Static Load (Imperial) | 413 |
| Compression Static Load (Metric) | 1838 |
| D (Imperial) | 0.5 |
| Durometer | 43 |
| Elastomer | Natural Rubber |
| Grade per SAE J429 | 2 |
| Manufacturer | RPM Mechanical Inc |
| Shear Spring Rate Ks (Imperial) | 8 |
| Shear Spring Rate Ks (Metric) | 46 |
| Shear Static Load (Imperial) | 138 |
| Shear Static Load (Metric) | 613 |
| Thread Size | 1/2-13 UNC |
| Type | 4 |
