Item # VCM-66-70 — VCM-66-70 Mount / Manufacturer: RPM Mechanical Inc
VCM Mountings are built for strength, simplicity, and long-lasting performance. Their single-bolt design makes installation fast and easy, while the robust construction withstands heavy dynamic shock loads — making them ideal for demanding Off-Road and Construction environments. The built-in steel cup minimizes vertical movement and extends rubber life, ensuring reliable protection against bumps, shocks, and vibration.
Need a custom part similar to VCM-66-70 Mount? Request a custom quote or give us a call at 888-842-5668.

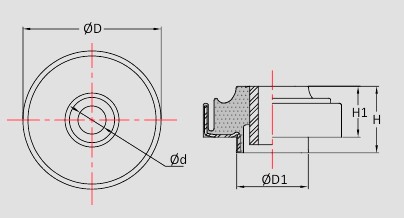

d (mm)
18.8
D (mm)
66
D1 (mm)
39.8
H (mm)
38
H1 (mm)
29.5
C (mm)
40.0-40.3
E (mm)
19/20
Bolt Size
M16
Max. Bolt Torque (N/m)
240
Max Load (kg)
70
Vibration Control
Molded Rubber
