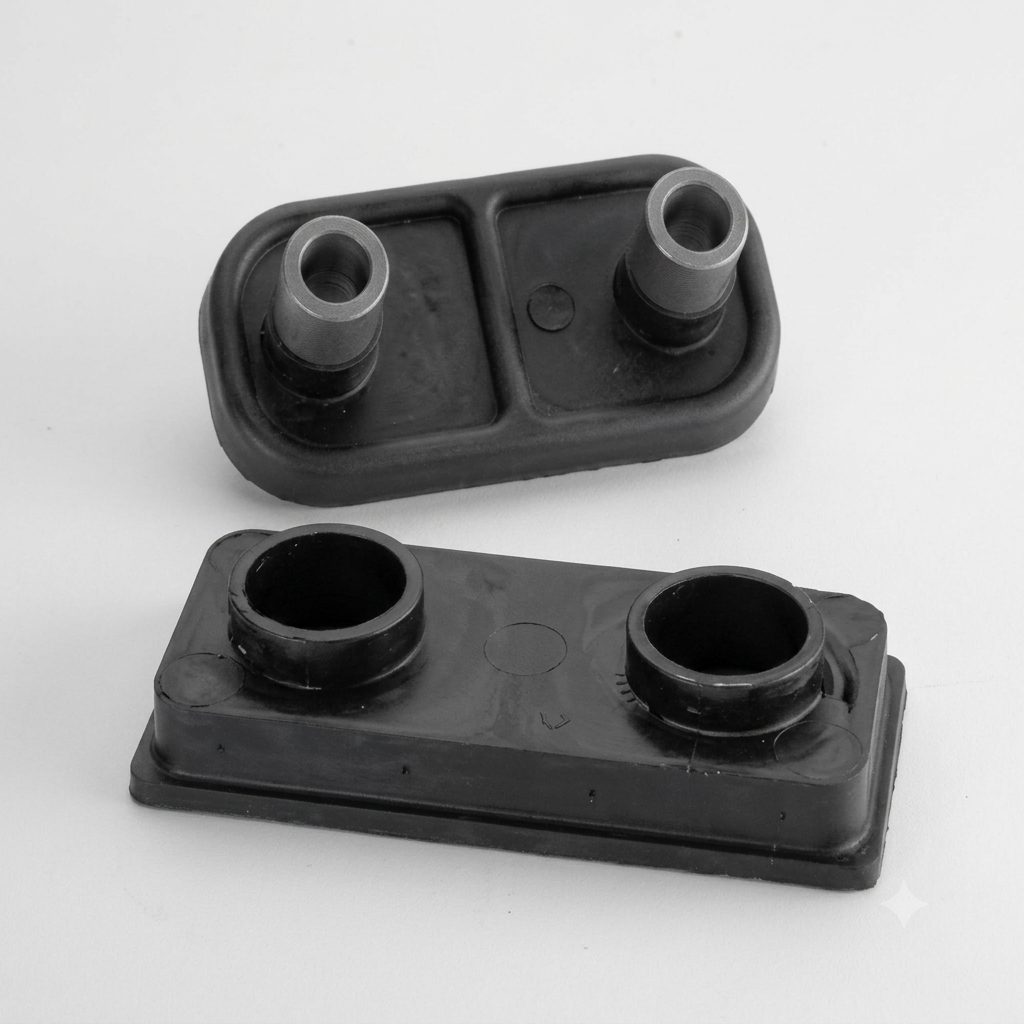

Item # J-21246-6 — J-21246-6 Binocular Engine Mounts
Need a custom part similar to J-21246-6 Binocular Engine Mounts? Request a custom quote or give us a call at 888-842-5668.
Deflection at Rated Load (in)
0.101
Deflection at Rated Load (mm)
2.57
Lateral Stiffness (lbs/in)
1950
Lateral Stiffness (N/m)
341
Overall Height (C) (in)
2.39
Overall Height (C) (mm)
60.7
Rated Vertical Load (lbs)
1300
Rated Vertical Load (kg)
5783
Sleeve Length (A) (in)
2.48
Sleeve Length (A) (mm)
62.9
Socket Thickness (B) (in)
0.63
Socket Thickness (B) (mm)
16
Total Height (C) (in)
2.39
Upper Part Thickness (D) (in)
1.34
Upper Part Thickness (D) (mm)
34
Vertical Stiffness (lbs/in)
13625
Vertical Stiffness (mm)
2386
